Building Material Shops 200kg Pneumatic Pneumatic Scissor Lift Table Platforms

2 Units
MOQ
$650.00(2 - 3 Units) $635.00(>=4 Units)
가격
Building Material Shops 200kg Pneumatic Pneumatic Scissor Lift Table Platforms
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
상태: 새롭습니다
적용 가능한 산업: 식물, 식품 &를 제조하는 재료사, 기계류 정비소를 구축하기 ; 음료 공장, 농장, 소매점, 식품 판매점, 건설 works ;
전시실 위치: 어떤 것
리프트 메카니즘: 가위 리프트
리프트 드라이브 / 작동: 공기 / 공압
힘: --
민. 올림 높이: 285 밀리미터
테이블 사이즈: 1000 X 500 밀리미터
윤곽치수: 1000/500/285 밀리미터
중량: 96 킬로그램
보증: 1년이요
기계류 테스트 리포트: 제공됩니다
화면 출하검사: 제공됩니다
마케팅 타입: 뜨거운 제품 2019년
핵심 구성 요소의 보증: 1년이요
핵심 구성 요소: 펌프
타입을 운영하세요: 공압
능력: 100-200kg
최대. 상승된 높이: 750 밀리미터
분. 낮아진 높이: 285 밀리미터
플랫폼 사이즈: 1000 X 500 밀리미터
급기: 100 psi 또는 0.80Mpa
기중속도: 초 당 75 밀리미터
표면 처리: 코팅된 파우더
기본색: 교통 오렌지색 2009년
보증서 서비스 뒤에: 비디오 기술 지원, 온라인 지원, 예비품, 현장 유지 보수와 수리 서비스
지역 서비케이아 지역: 어떤 것
애프터 서비스는 제공되었습니다: 작동하는 무료 예비품, 현장 설치와 훈련하면서, 현장 유지 보수와 수리 서비스, 비디오 기술 지원, 온라인 지원
인증: CE
기본 정보
인증: CE
결제 및 배송 조건
Packaging Details: standard export package - plywood pallet & carton
제품 설명
Product Description

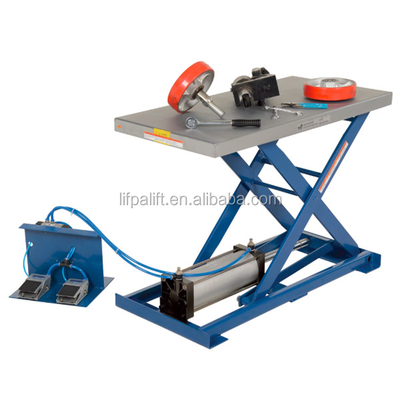

200kg Air Powered Pneumatic Scissor Lift Table

The Air Powered Pneumatic Scissor Lift Table features foot operated controls for raising and
lowering the scissor platform.
A perfect choice for use in many environmentally sensitive applications.
No electrical power or hydraulic oil is required.



Real Pictures





Product Highlights



Air-cylinder - No Electrical power or hydraulic oil is required







User-friendly foot operated controls







• Optional SUS 304 Grade deck





Features

Portable ergonomic lift table minimizes workers bending and lifting

• Perfect for use in many environmentally sensitive applications

• No electrical power or hydraulic oil is required

• All steel frame with powder coated finish

• Foot control for effortless operation

• Custom size and specs available





Main Parameters

Model   PG-10-P PG-20-P
capacity kg 100 200
table size mm 1000 x 500 1850 x 700
raised height mm 750 1250
lowered height mm 285 300
air supply Mpa 0.80 0.80
lift speed mm/s 78 72
weight kg 84 128





Optional Equipment





Related Products

We offer a full line of hydraulic scissor lift tables and other material handling equipment.
